Reach the next level with the high-performance precision controller, the NACON REVOLUTION X UNLIMITED for XBOX and PC. Rack up kills in your Battle Royale and FPS/TPS games and stay at the heart of the action in your action or racing games. Maintain control and dominate your opponents, no matter the situation or the game.
"The controller feels excellent in the hand"
"The Nacon Revolution X Unlimited is 110% as bold as its claims"
The REVOLUTION X UNLIMITED controller by NACON, officially licensed by Xbox, allows you to stay in control of your game. Eliminate your opponents with enhanced responsiveness and deadly precision. Rack up victories in your favorite Battle Royale or FPS/TPS games with a range of fully customizable features and settings via the integrated control screen. Experience the ultra-performance PC mode with ultra-low latency and gyroscopic aiming to stay ahead. Designed by and for competitive players and adaptable to all your games, dominate the competition with the REVOLUTION X UNLIMITED.
Instant Triggers: adjustable instant triggers with micro-switch components.
Mechanical Precision: micro-switch components for ultra-responsive gameplay. 6 additional shortcut buttons that can be configured with keyboard keys pc mode only.
Customization via LCD Screen: easy and intuitive customization, mapping programming, and audio source mixing.
Hall Effect Magnetic Technology: joysticks and triggers benefit from greatly enhanced precision and durability through magnetic effect, preventing "joystick drift".
Wireless Connectivity: 2.4GHz USB radio frequency, Bluetooth compatible with Android devices.
Total Customization: 3 sets of weights, 6 joystick heads, 2 D-pads, storage case, 4 joystick rings (two medium and two large), and more than 60 customization options.
Application: possibility to import up to 4 custom profiles per platform and program the 6 shortcut keys via a customization application available on PC and Xbox. Specific programming of shortcut keys to assign them to keyboard keys (in PC mode). Joystick range adjustment, audio mixers and pre-recorded profiles available.
Vibration: four vibration motors (two in the handles and two in the triggers).
High-Performance PC Mode: latency reduced to 1ms with wired connection and 2ms with wireless connection, Gyroscope function to simulate a joystick or the D-pad. Mapping of PC keyboard keys to controller buttons.
Long Battery Life: +10 hours battery life for extended gameplay without needing to recharge the controller.
Charging dock : store and charge your controller easily in six hours with the included charging station
The lock feature deactivates the Menu and View buttons to prevent you from accidentally pressing them in game.
You can find the Lock button on the back of the controller.
Make sure that the gyroscope shortcut is mapped to the correct button:
Also make sure that you set the controller to the correct mode:
The update button in the RXU app is designed to be clickable only when a new update is available. If you are unable to click on it, this means your controller is already up to date and no further action is required.
The indicator dots on the update button work as follows:
You can use the Revolution X Unlimited on Steam Deck in Bluetooth mode.

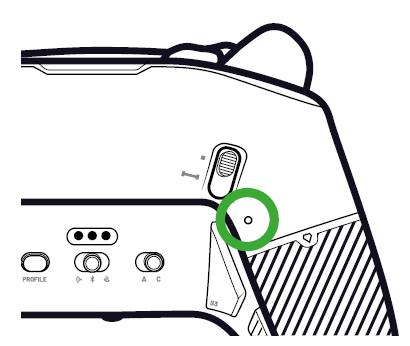

To reset the controller, insert the tip of a paper clip into the reset hole on the back of the controller for three seconds.
When you set the controller to Bluetooth mode, the audio features are unavailable because of the limitations of the Bluetooth protocol. You can't access or change the audio settings and you can't connect a headset to Bluetooth through the controller directly.
When the controller is set to Bluetooth and Wired mode, it is detected as an audio device. It means that the microphone remains connected to the console, but that you can listen to the audio on your phone without having to remove your headset or switch to another mode.
In wireless mode, the battery autonomy is up to 10 hours with the screen and the audio on. If they're off, it's up to 20 hours.
IMPORTANT: When you first use the controller, make sure to remove the support beneath it. Otherwise, the controller cannot charge.
This is as designed. To change the colour of the LED ring light through the application, you must set the controller to Advanced mode.
In wired mode, plug the controller into your PC or console with the supplied cable and press the Nexus button for three seconds.
In wireless or Bluetooth mode, press the Nexus button for three seconds.
Yes, the Revolution X Unlimited Controller includes a vibration feature. However, it is not available if the controller is set to Bluetooth mode.
You can choose to activate or deactivate the vibrations in different areas of the controller: Left trigger, Left hand, Right trigger and Right hand.
You can find all the links to download applications and software for your controllers in the table below.
| CONTROLLERS | LINKS |
|---|---|
| Daija Arcade Stick | |
| GC-400ES |
|
| MG-X/MG-X Pro |
|
| Pro Compact Controller |
|
| Revolution Pro Controller |
|
| Revolution Pro Controller 2 |
|
| Revolution Pro Controller 3 |
|
| Revolution Unlimited Pro Controller |
|
| Revolution X Pro Controller |
|
| Revolution X Unlimited Controller |
|
| Revolution 5 Pro Controller |
|
| Wired Compact Controller |
|
You can download the app here.
If you have trouble installing it, click View in Store and download it from there.
NOTE: Make sure that you download the app named "Revolution X Unlimited" and not "Revolution-X", which is dedicated to the Revolution X Pro Controller only.
To charge your controller, you must always use the charger/cable supplied with it. As specified in the safety notice, using another cable (like a phone charger for instance) will damage the battery. This kind of damage is not covered by the warranty.
Unfortunately, Chatpad keyboards aren't compatible.
The accessory box for this controller is currently out of stock. However, the accessory box for the Revolution 5 Pro Controller is also compatible.
Feel free to contact the support team with a proof of purchase so we can send you one.
The Revolution X Unlimited Anniversary Edition has the same features and performances as the standard version. The main difference is the design inspired by the Xbox 360, created to celebrate the console's 20th anniversary.
The Anniversary Edition doesn't include any additional exclusive accessories.
The Revolution X Unlimited Controller is compatible with PC, Xbox One and Xbox Series X|S.
You can't use it to play on iPhone or on Mac. However, you can do audio mixing with iOS.
The Revolution X Unlimited Controller turns off automatically when it is not connected to a PC or a console.
To quickly turn it off when you are in wireless or Bluetooth mode, set the Mode button to Wired. The button turns off the controller immediately.
If you're still having issues, please contact the support so that we can help you further.
